Comprehensive Halogenated Butyl Rubber Storage and Handling Guidelines for High-Performance Applications

Optimizing material longevity and manufacturing efficiency through rigorous adherence to industry-standard protocols and technical excellence.

Introduction to Material Integrity

In the precision-driven world of specialty elastomers, maintaining the physical and chemical properties of raw materials is paramount. Manufacturers in the automotive, medical, and aerospace sectors rely heavily on the unique gas barrier and vibration damping properties of halogenated polymers. However, the sensitivity of these materials to environmental factors necessitates strict halogenated butyl rubber storage and handling guidelines to prevent premature cross-linking, contamination, or physical degradation. At Chambroad, we emphasize that quality begins long before the rubber enters the mixing chamber.

The challenges faced by procurement and warehouse managers often stem from temperature fluctuations, UV exposure, and improper stacking, which can lead to cold flow or oxidation. By understanding the molecular stability of these elastomers, enterprises can significantly reduce waste and enhance the reliability of their final products, ranging from high-performance tire inner liners to critical medical stoppers.

The Chemistry of Halogenated Butyl Rubber

Halogenated butyl rubber, specifically Chlorinated Butyl Rubber (CIIR) and Bromobutyl Rubber (BIIR), is produced by halogenating the isoprene units in the polymer chain. This modification enhances the curing rate and allows for co-vulcanization with other unsaturated rubbers like NR and SBR. Materials such as Chlorinated Butyl Rubber CIIR1338 exhibit exceptional resistance to heat and ozone, but their reactive halogen sites also make them more sensitive to improper storage conditions compared to standard IIR.

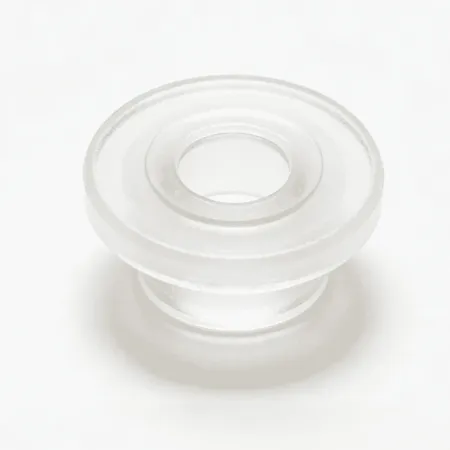

Bromobutyl variants, such as Bromobutyl Rubber BIIR2332 and BIIR 2828, offer even faster cure cycles, which is highly beneficial for the production of medical rubber stoppers. However, this increased reactivity demands a more controlled environment to avoid unintended chemical shifts over time.

Essential Halogenated Butyl Rubber Storage and Handling Guidelines

To ensure the stability of the polymer, the following environmental controls must be strictly implemented within the warehouse facility:

Temperature Control and Thermal Stability

The storage area should be maintained at a cool temperature, ideally below 35 degrees Celsius. Prolonged exposure to high heat can accelerate the aging process and cause the rubber blocks to stick together, a phenomenon known as massing. Cold flow is another concern where the polymer deforms under its own weight if kept in a warm environment for extended periods.

Light Exposure and UV Shielding

Direct sunlight is a primary enemy of halogenated elastomers. Ultraviolet rays can trigger free radical reactions on the surface of the rubber, leading to skin formation or discolored surfaces. Warehouses should utilize UV-filtered lighting and ensure that windows are either absent or treated with opaque coatings. Materials should always remain in their original opaque packaging until they are ready for processing.

Ozone Protection and Ventilation

Ozone is a powerful oxidizing agent that can cause surface cracking. It is vital to keep the storage area away from high-voltage electrical equipment, such as electric motors or transformers, which generate ozone. Proper air circulation is necessary, but it should be designed to minimize the influx of outdoor pollutants.

Safe Handling and Operational Protocols

The physical handling of the rubber crates and bales requires as much attention as the environmental factors. Adhering to professional halogenated butyl rubber storage and handling guidelines protects both the material and the workforce.

• Pallet Stacking: Avoid excessive stacking height. Over-stacking can compress the lower bales, causing deformation and making it difficult to feed the rubber into mixers or extruders.
• Contamination Prevention: Ensure that handling tools and gloves are free from oils, greases, and other chemicals. Even trace amounts of incompatible materials can lead to curing defects in products like tire inner liners or seals.
• First-In-First-Out (FIFO) Management: Implement a robust inventory tracking system to ensure that older stock is used first. While halogenated butyl has a respectable shelf life, utilizing the material within its optimal window ensures peak performance.
• Mechanical Handling: Use forklifts with appropriate attachments to prevent puncturing the protective liners. Damaged liners expose the rubber to moisture and air, which can negatively impact the moisture-sensitive nature of medical-grade applications.

Why Trust Chambroad Sinopoly Solutions

As a leader in high-performance materials, Chambroad provides more than just raw elastomers. Our Sinopoly division is dedicated to the full-cycle innovation of rubber materials. For instance, our Rubber Reimagined initiative showcases our commitment to sustainability and advanced manufacturing.

We maintain rigorous quality control standards that align with global halogenated butyl rubber storage and handling guidelines. Our products are packaged in specialized crates that provide maximum protection against mechanical stress and environmental contamination. Furthermore, our technical team offers localized support to help clients optimize their own storage facilities and mixing processes.

Whether you are utilizing our Betopp POE G6012 for automotive modifications or our medical-grade CIIR for pharmaceutical packaging, you can expect consistency and excellence in every batch.

Frequently Asked Questions

What is the typical shelf life for BIIR and CIIR?

When stored according to recommended halogenated butyl rubber storage and handling guidelines, these materials typically maintain their properties for at least 24 months. However, we recommend a re-test of physical properties if the material has been stored for over two years.

Can halogenated butyl rubber be stored outdoors?

Outdoor storage is highly discouraged. Exposure to fluctuating temperatures, rain, and UV light will lead to rapid degradation and render the material unsuitable for high-precision applications like medical stoppers or tire components.

How do I prevent massing and cold flow?

Keeping the storage temperature below 35 degrees Celsius and limiting the stack height are the most effective ways to prevent massing. Using metal crates rather than wooden pallets can also provide better structural support for the bales.

Are samples available for testing?

Yes, we encourage professional clients to request samples of our BIIR 2332 or other grades to verify compatibility with their specific formulations and storage capabilities.

Conclusion: Ensuring Manufacturing Excellence

Adhering to comprehensive halogenated butyl rubber storage and handling guidelines is not merely a logistical necessity; it is a strategic investment in product quality and brand reputation. By controlling the warehouse environment and implementing precise handling protocols, manufacturers can ensure that the advanced properties of elastomers like those from Chambroad are fully realized in the final application.
