Optimizing Industrial Performance with Halogenated Butyl Rubber Diaphragms for Pneumatic Systems
In the demanding world of industrial automation and fluid control, the reliability of a single component can determine the uptime of an entire production line. For engineers and procurement specialists, the challenge often lies in finding materials that can withstand millions of cycles without losing seal integrity. This is particularly true when selecting halogenated butyl rubber diaphragms for pneumatic systems, where gas impermeability and chemical resistance are non-negotiable requirements.
At Chambroad, we understand that traditional elastomers often fall short in high-frequency or corrosive environments. Through our extensive experience in advanced polymer synthesis, we have developed a suite of halogenated Isobutylene-Isoprene Rubber (IIR) solutions, specifically designed to address the common failure points of pneumatic control valves, pumps, and actuators. This guide provides a technical deep dive into how halogenated butyl rubber diaphragms for pneumatic systems can reduce maintenance costs and improve operational safety.
The Science of Resilience: Understanding Halogenated IIR
Standard butyl rubber is renowned for its excellent gas barrier properties. However, it suffers from slow vulcanization rates and limited compatibility with other elastomers. By introducing halogen atoms (chlorine or bromine) into the polymer chain, we create Chlorobutyl (CIIR) and Bromobutyl (BIIR). These modifications significantly enhance the cross-linking efficiency while maintaining the core benefits of the original polymer.
Chlorobutyl (CIIR 1338)
Ideal for applications requiring high heat resistance and stable aging properties. It is a preferred choice for heavy-duty industrial pneumatic valves where environmental consistency is key.

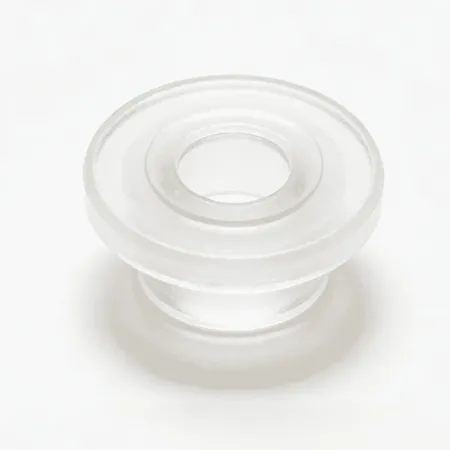

View CIIR 1338 SpecificationsBromobutyl (BIIR 2332 / 2828)
Known for faster curing times and superior adhesion to other materials. This makes it the standard for complex, multi-layered halogenated butyl rubber diaphragms for pneumatic systems used in medical and high-precision equipment.
Explore BIIR SolutionsWhy Choose Halogenated Butyl Rubber Diaphragms for Pneumatic Systems?
The performance of a pneumatic system is only as strong as its weakest seal. When air, nitrogen, or specialized gases are used to drive movement, any permeation leads to energy loss and precision drift. Here is why halogenated butyl rubber diaphragms for pneumatic systems are the industry benchmark:
- Exceptional Gas Barrier: Halogenated IIR offers permeation rates significantly lower than natural rubber or EPDM, ensuring pressure stability over long periods.
- Dynamic Fatigue Resistance: In pneumatic actuators, diaphragms undergo rapid, repetitive stretching. Chambroad's BIIR 2828 formula is optimized for high-frequency cycles, preventing crack initiation.
- Chemical and Thermal Stability: Pneumatic systems often operate near machinery that generates heat or uses lubricants. Our halogenated solutions resist ozone, weathering, and heat up to 120 degrees Celsius.
Chambroad's Commitment to Quality and Innovation
Our expertise extends beyond simple material supply. We offer integrated technical support to ensure our halogenated butyl rubber diaphragms for pneumatic systems integrate seamlessly into your existing workflows.
Medical Grade Precision
Utilizing our medical-grade butyl rubber technology, we produce diaphragms that meet stringent FDA and RoHS standards, essential for medical ventilators and clinical pneumatic systems.
Eco-Friendly Manufacturing
Our ISCC PLUS certified processes ensure that your supply chain remains sustainable without sacrificing material performance.
Material Performance Comparison
| Property | Standard IIR | Halogenated IIR (Chambroad) | Natural Rubber |
|---|---|---|---|
| Gas Permeability | Low | Extremely Low | High |
| Curing Speed | Slow | Fast | Fast |
| Heat Resistance | Good | Excellent | Poor |
Frequently Asked Questions
How long is the service life of these diaphragms?
When using Chambroad's halogenated butyl rubber diaphragms for pneumatic systems, service life typically increases by 25-40% compared to standard elastomers due to superior ozone and fatigue resistance.
Can these materials be used with corrosive gases?
Yes, our CIIR and BIIR series are specifically designed to resist a wide range of chemicals, including acidic and alkaline vapors common in industrial pneumatic lines.
Do you provide customized material compounding?
Absolutely. We provide tailored high-performance products based on small-pilot, medium-pilot, and industrial-scale configurations to meet specific application requirements.
Ready to Upgrade Your Pneumatic Performance?
Don't let subpar materials compromise your system's efficiency. Invest in the durability and precision of halogenated butyl rubber diaphragms for pneumatic systems today.
