Industrial Solution

PP Pipe Material PA14D

Weather-Resistant Pipe-PP-Material

It has good chemical resistance and biocompatibility, is safe and hygienic in contact with drugs, and is used as a special material for syringes.

Suitable for hot/cold water pipes and municipal water supply lines
Offers good impact resistance for long-term pipeline stability
Easy to process, supporting efficient pipe manufacturing
Resists weathering and environmental aging for extended service life

Technical Details

01
Advantage

Easy Processability

Wide processing temperature window, enabling flexible and efficient production processes for various applications.

02
Advantage

High Precision & Dimensional Stability

Excellent dimensional stability after molding, ensuring high fit accuracy of product components and assembly precision.

03
Advantage

High Transparency for Easy Identification

Superior optical transparency, facilitating clear observation of liquid medicine volume in medical device applications.

04
Advantage

Food-Grade Safety & Sterilizability

Food-grade certified material, compatible with high-temperature disinfection and sterilization processes (autoclaving, etc.).

05
Advantage

High Toughness & Impact Resistance

Resistant to low-temperature embrittlement and impact fracture, ensuring durable performance in harsh operating conditions.

Melt Flow Rate (MFR)
0.26 g/10min (Method: GB/T 3682)
Ash Content
0.011 % (Method: GB/T 9345.1)
Yellowness Index
-2.1 (Method: HG/T 3862)
Tensile Stress @ Yield
24.5 MPa (Method: GB/T 1040)
Tensile modulus of elasticity
786 MPa (Method: GB/T 1040)
Tensile Stress @ break
26.5 MPa (Method: GB/T 1040)
Tensile Stress Nominal Strain
485 % (Method: GB/T 1040)
Flexural Modulus
804 MPa (Method: GB/T 9341)
Charpy Impact Strength (23℃)
56 kJ/m² (Method: GB/T 1043)
Charpy Impact Strength (-20℃)
2.7 kJ/m² (Method: GB/T 1043)
DTUL
76 ℃ (Method: GB/T 1634.2)
Rockwell Hardness (R)
83 (Method: GB/T 3398.2)
Moulding Shrinkage (SMp)
1.2 % (Method: GB/T 17037.4)
Moulding Shrinkage (SMn)
1.2 % (Method: GB/T 17037.4)
Melting Temperature
145 ℃ (Method: GB/T 19466.3)
Oxidation induction time (210 ℃, aluminum dish)
44.5 min (Method: GB/T 19466.6)
Fixed Bending Stress
19.2 MPa (Method: GB/T 9341)
Note: The above data are typical values for the relevant product, provided for reference only. They do not imply, nor legally guarantee, specific properties of the product or its suitability for any particular purpose.

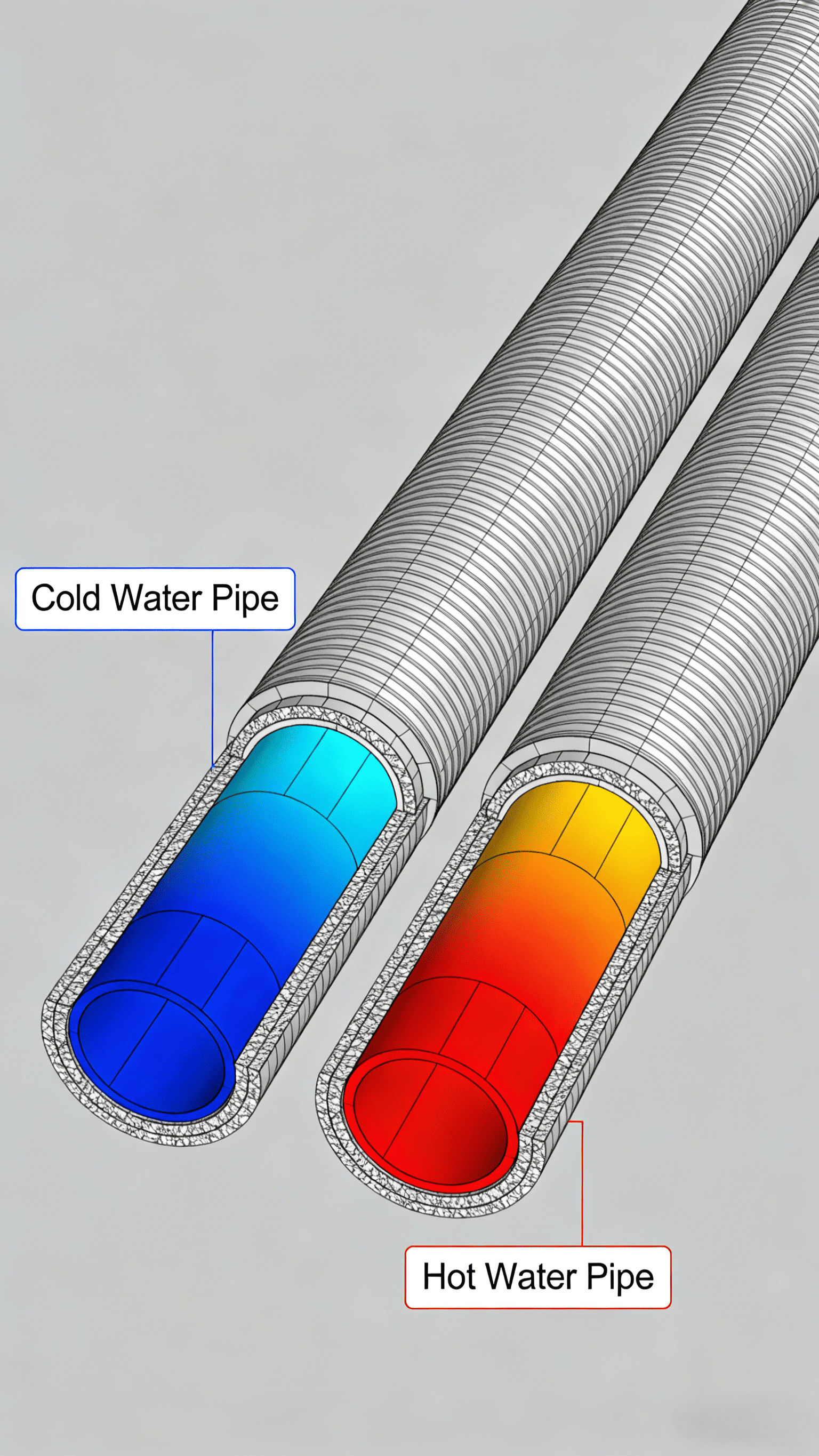

Cold and Hot Water Pipes

Cold and Hot Water Pipes
